Morimoto

4BANGER BAR: 10 POD / 40.5"

4BANGER BAR: 10 POD / 40.5"

Regular price €2.994,95 EUR
Regular price Sale price €2.994,95 EUR
Sale Sold out
Tax included.

Get it between -

Please contact us before ordering this product!


PRODUCT DETAILS

OFF-ROAD REINVENTED: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The Double row BangerBar continues that tradition as a bespoke light bar, where you spec the power. You spec the color. You spec the length. You set the radius. And then you destroy the darkness. Every bar is pre-spec'd with the 4Banger Pods, the inner links, a set of universal end-mounts, and all the hardware necessary to assemble.

4BANGER NCS AND HXB: The 4Banger is extremely low profile, making them the perfect platform for the Double row BangerBars. The NCS version provides maximum bang for the buck and out-performs most everything else in their class. The HXB version sits at the top of the performance totem-poll, produces maximum output. With the latest LED chips from Osram inside, each pod is a serious powerhouse of its own.

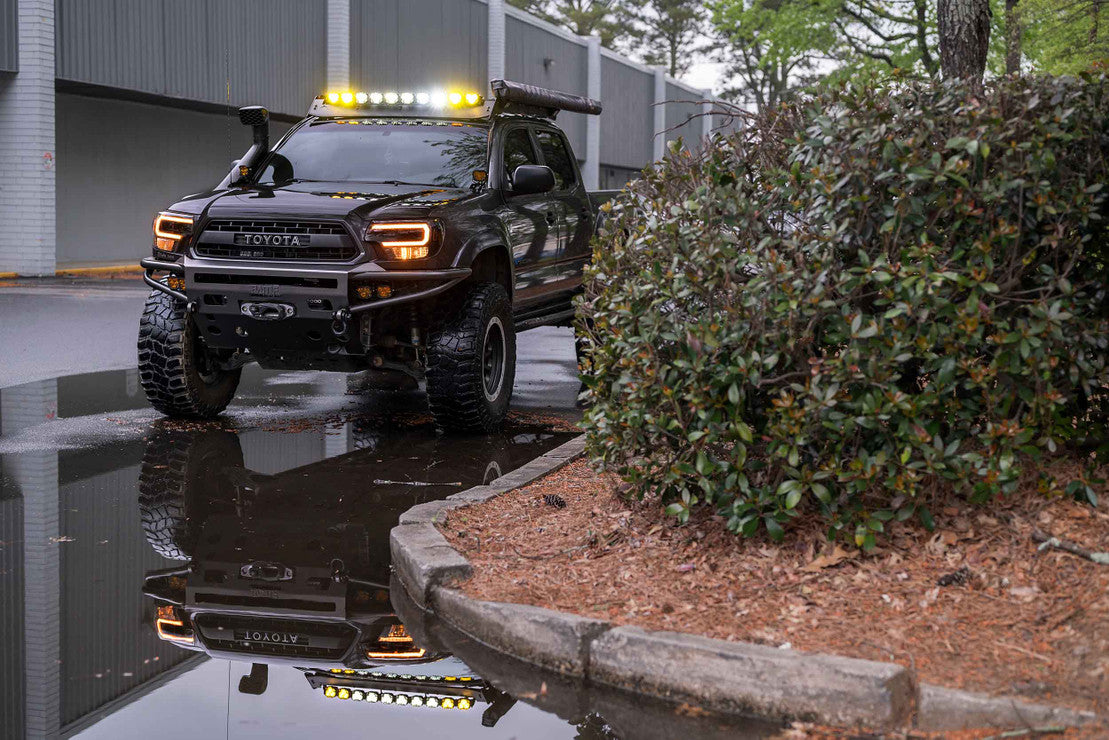

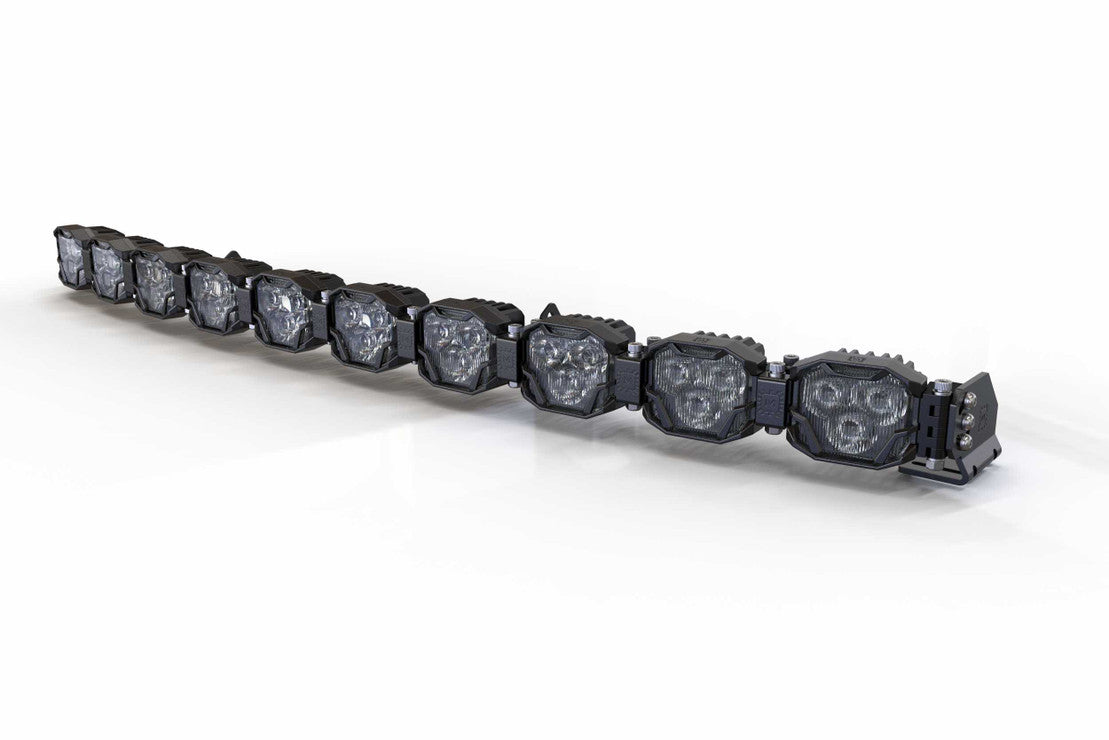

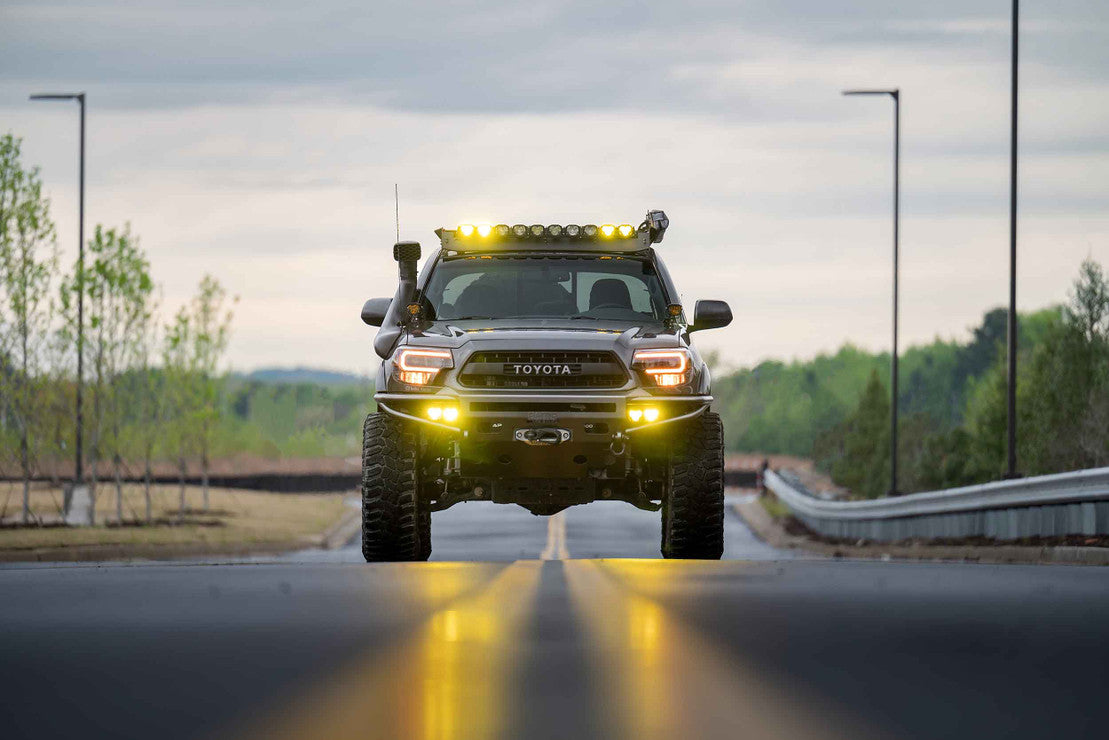

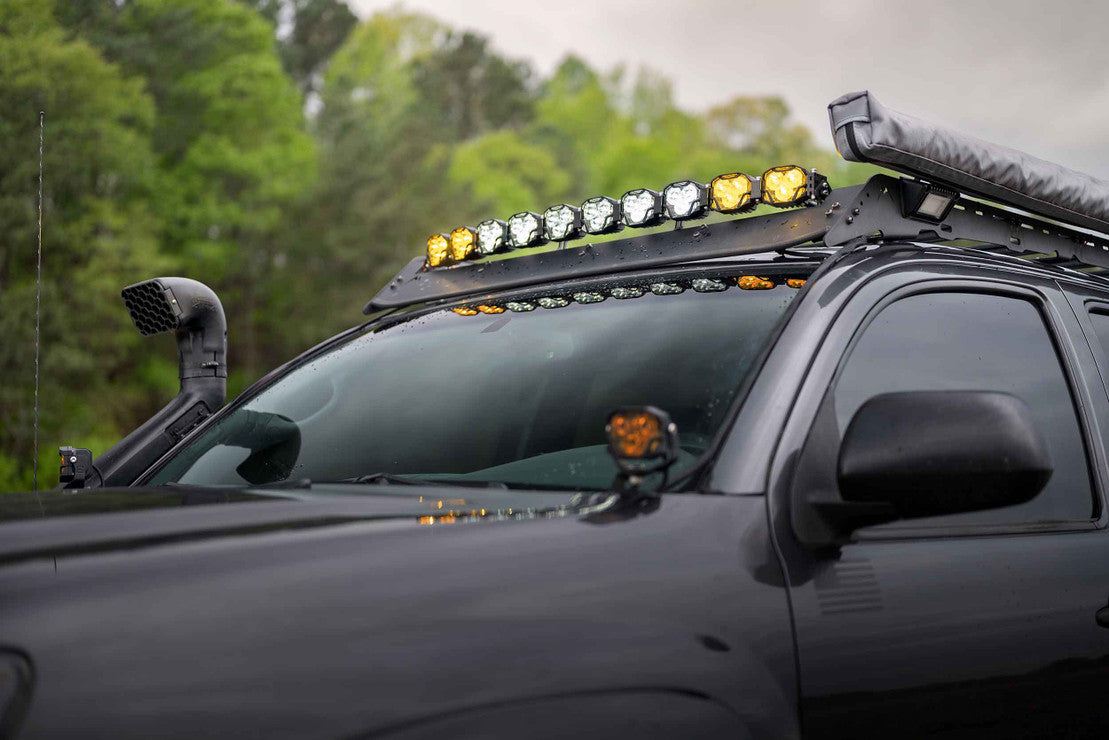

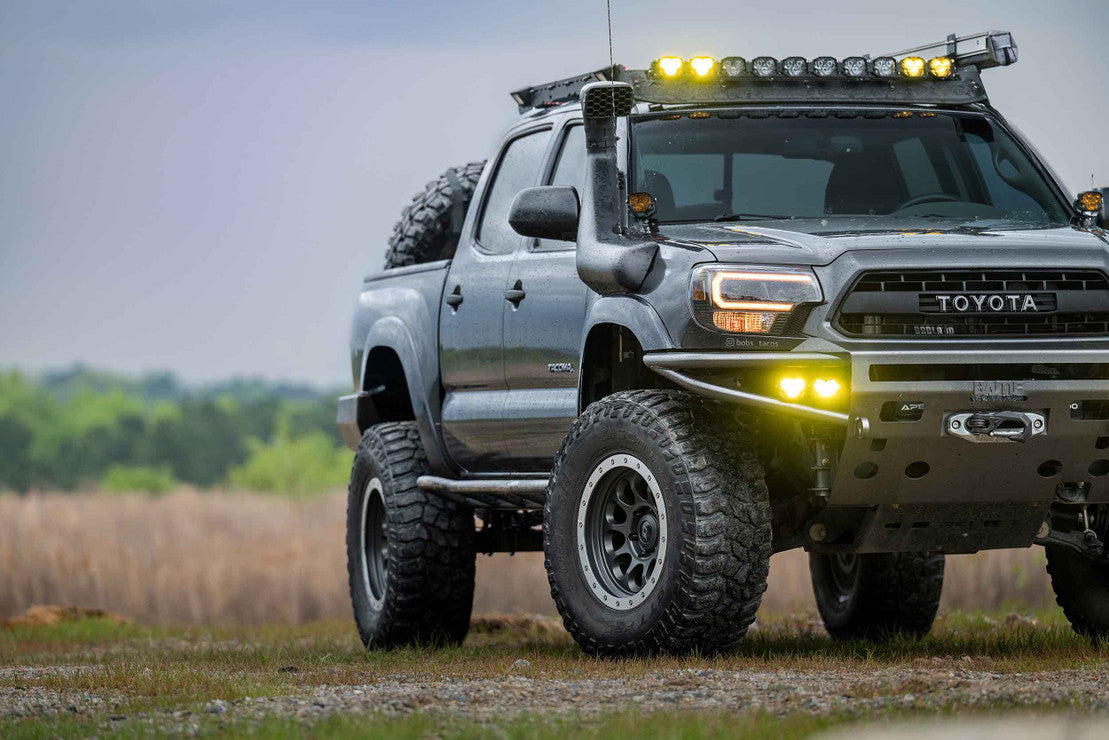

STRAIGHT OR CURVED: Here, you have a full range of adjustability. The entire bar can be setup either straight or curved from the end to end. It can also be setup straight in the center, and angled only on the outer edges. The beefy, CNC machined aluminum links are all independently adjustable, allowing you to dial it in for every application. They are a perfect addition to any front bumper, grille, or roof rack.

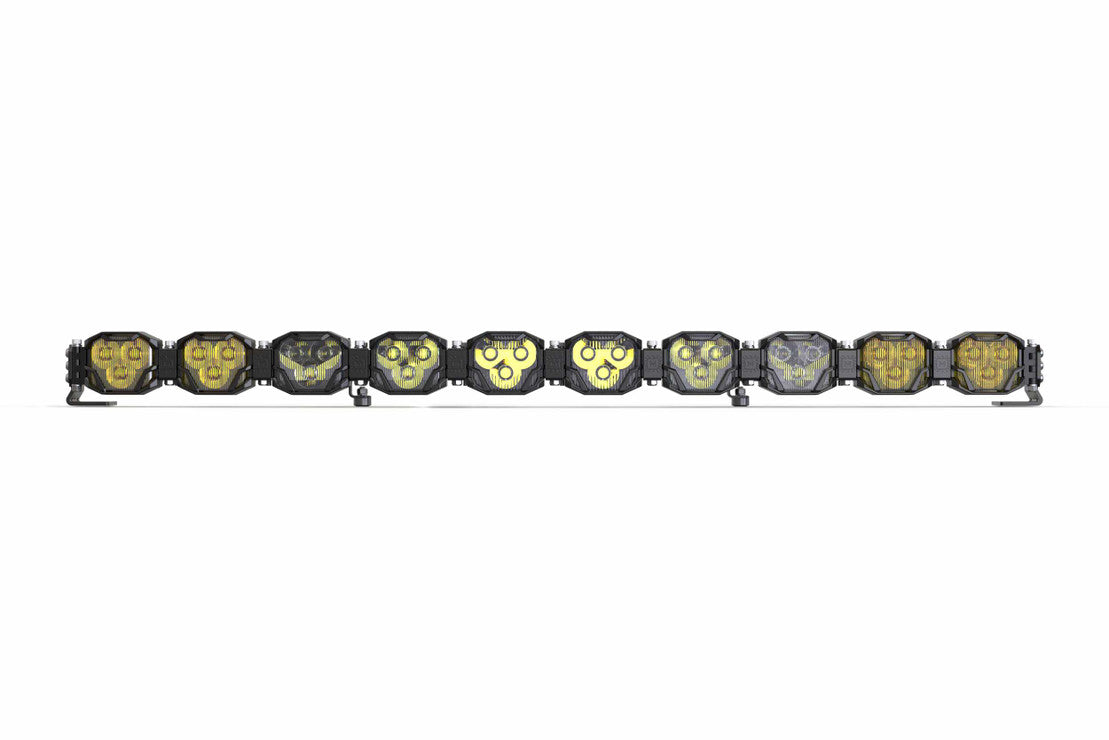

PERFORMANCE: The Double Row BangerBars are configured to pack some serious punch by pairing our combo, spot, and wide beam pods into a high output light bar. LucidShape and SolidWorks were used to optimize both optical and thermal performance around the most modern, lumen-dense LEDs from Nichia and Osram. With two performance tiers, white, yellow or a white/yellow combo setup, there is a Double row BangerBar to suit every performance need and driving style.

INTENSITY AND COVERAGE: The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The wide optics produce a very wide beam that drastically improves visibility off to the sides of the road. The spot beam Illuminates well into the distance and features a highly focused 5-degree hot spot, making it the perfect weapon for long range visibility. While each of these easily does the job on its own--nothing will compare to their coverage when combined.

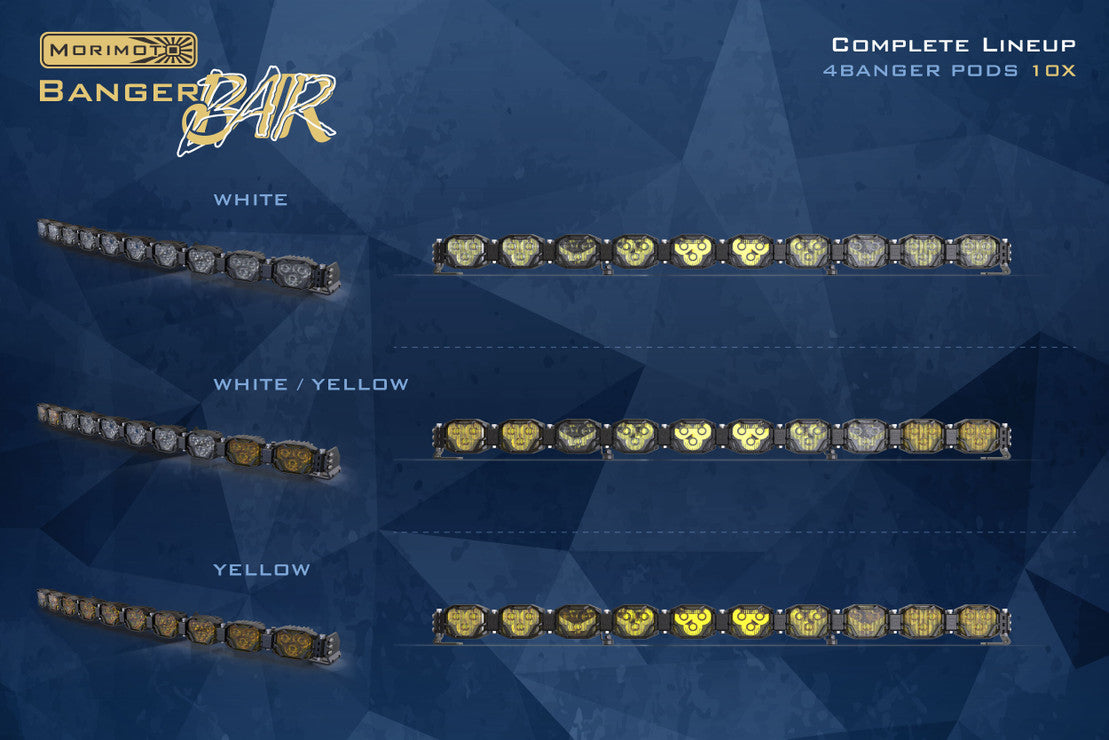

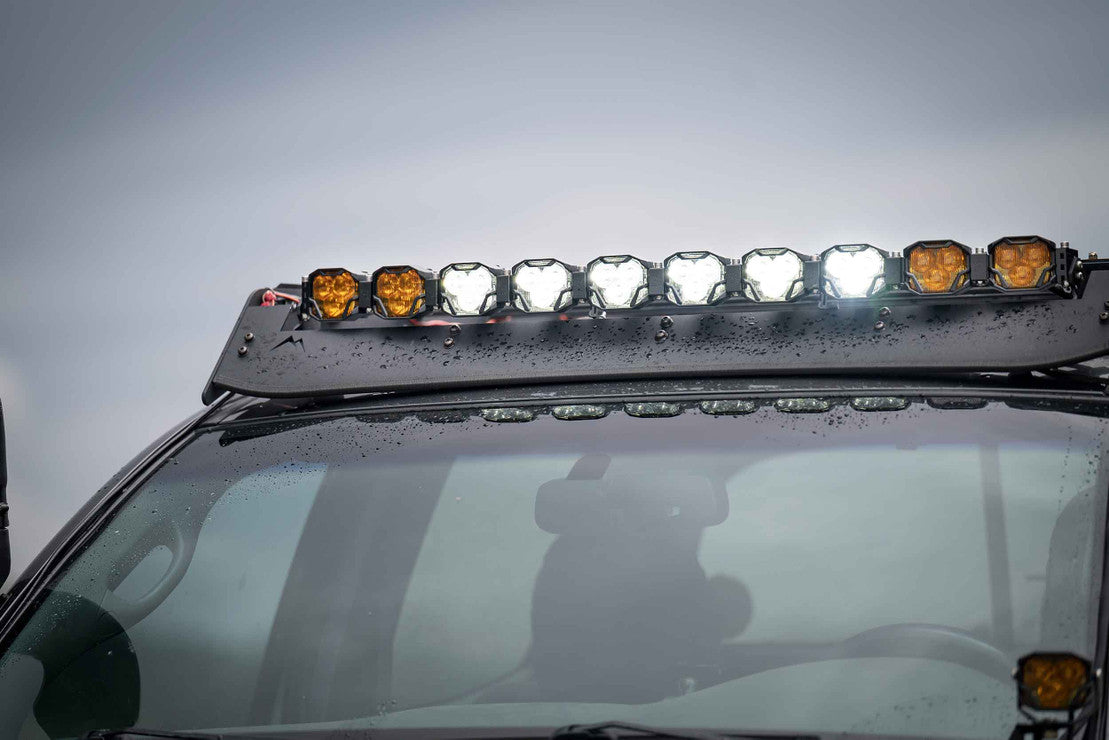

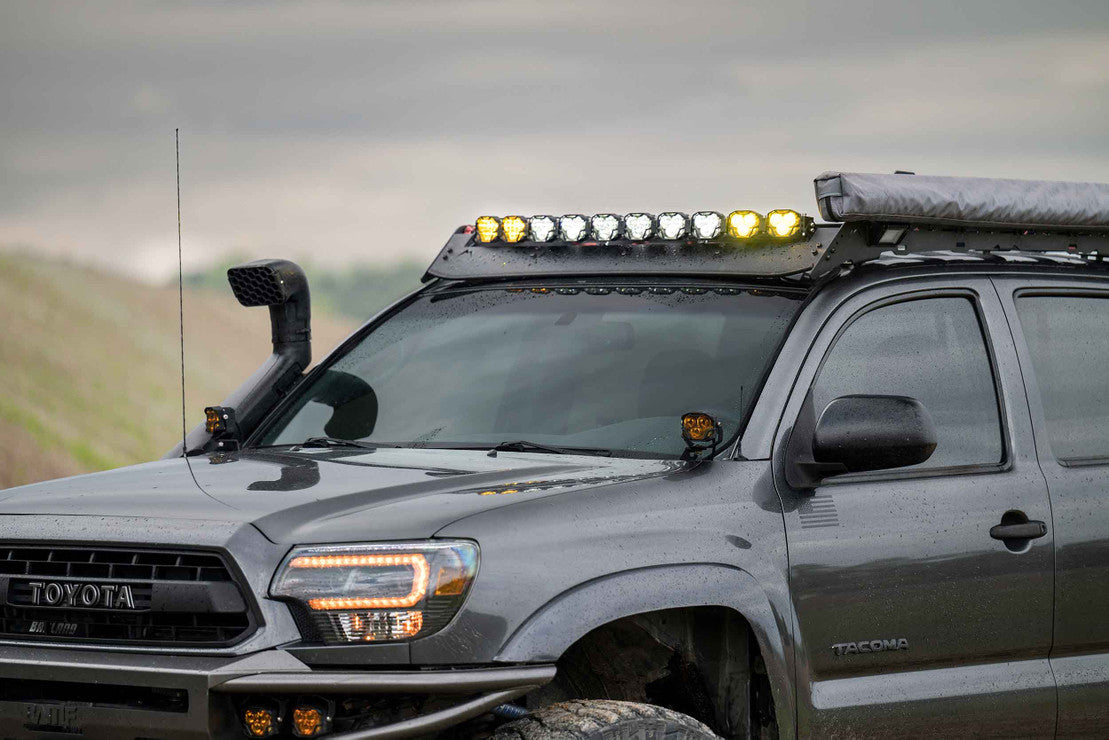

ALL WEATHER: The white-output version is ideal for maximum-visibility in the middle of the night. For those who desire optimal output in rain, snow, or fog; the Yellow-output version will slay in shady weather--and if you are ready to roll rain or shine, go with the white/yellow combo; where we spec yellow optics that are ideal for nearfield visibility and white output for central illumination.

RELIABILITY: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger pods features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance. All BangerBar hardware is CNC machined from solid aluminum and then protected with a dual-layer anodized finish. Your roof rack will rip off your truck before the BangerBar fails.

POWER UP: The Morimoto BangerBar has been developed from the ground up to set a new standard in their segment, and the same goes for the wire harness that comes included. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder. DT06-2S female outputs with dual seals. Proprietary M-Spec push button switch with Amber-LED backlight is wired with a quick-disconnect for an easy installation into the cabin. The harness can be setup to control all pods together, or the inner and outer pods independently.

PRODUCT SPECS

  • WHAT'S INCLUDED

  • LED PODS: 2x Morimoto 4Banger Spot (White or Yellow)

  • LED PODS: 4x Morimoto 4Banger Combo (White or Yellow)

  • LED PODS: 4x Morimoto 4Banger Wide (White or Yellow)

  • POD LINKS: 9x 4Banger Adjustable CNC Links w/ Hardware

  • CENTER SUPPORT LEGS: 2x Adjustable Central Support Legs w/ Hardware

  • UNIVERSAL MOUNTING FEET: 2x Adjustable Surface Mounts w/ Hardware

  • RELAY HARNESS: 1x Morimoto Switched Power Harness

  • COMPATIBILITY

  • UNIVERSAL: Mounts anywhere w/ included mounting Feet

  • IDEAL FOR: Steel Roof Racks and Bumpers

  • WIDTH: 103.02cm / 40.56in

  • HEIGHT: 49.8mm / 1.96in

  • DEPTH: 59.2mm / 2.33in

  • WEIGHT: 11.33kg / 24.79lb

  • MOUNTING WIDTH RANGE: 38.31-43.06" / 97.31-109.37cm

  • TECH SPECS

  • PEAK LUMINOSITY (RAW): 13,500lm (NCS), 30,000lm (HXB)

  • INTENSITY (HXB WHITE): 741,600 Cd (7,416 lux @ 10m)

  • INTENSITY (HXB DUAL COLOR): 710,800 Cd (7,108 lux @ 10m)

  • INTENSITY (HXB YELLOW): 515,200 Cd (5,152 lux @ 10m)

  • INTENSITY (NCS WHITE): 489,600 Cd (4,896 lux @ 10m)

  • INTENSITY (NCS DUAL COLOR): 466,720 Cd (4,667 lux @ 10m)

  • INTENSITY (NCS YELLOW): 337,120 Cd (3,371 lux @ 10m)

  • POWER (STABILIZED): 156.0w (NCS), 420.0w (HXB)

  • CURRENT (AMPS @ 13.5V DC): 15.00A (NCS), 32.00A (HXB)
