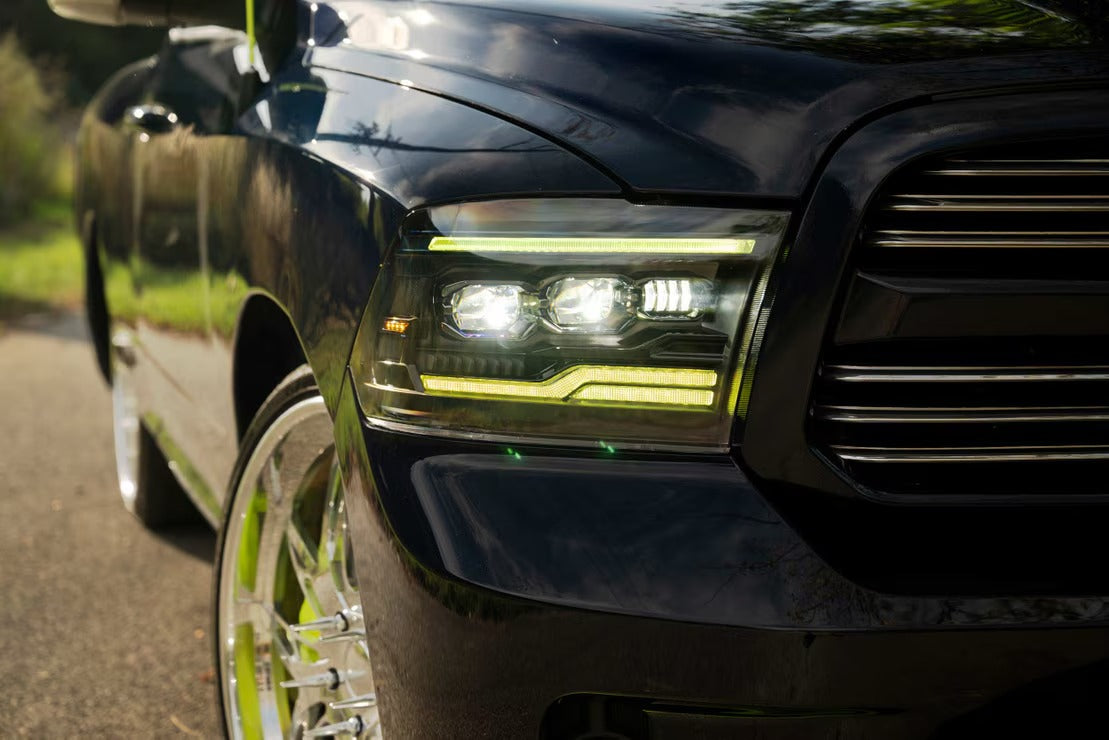

Dodge Ram 1500 (09-18) XRGB Evo LED Headlights
Dodge Ram 1500 (09-18) XRGB Evo LED Headlights
Couldn't load pickup availability
Get it between -
DESCRIPTION
FEATURES & BENEFITS
XRGB Evo: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.

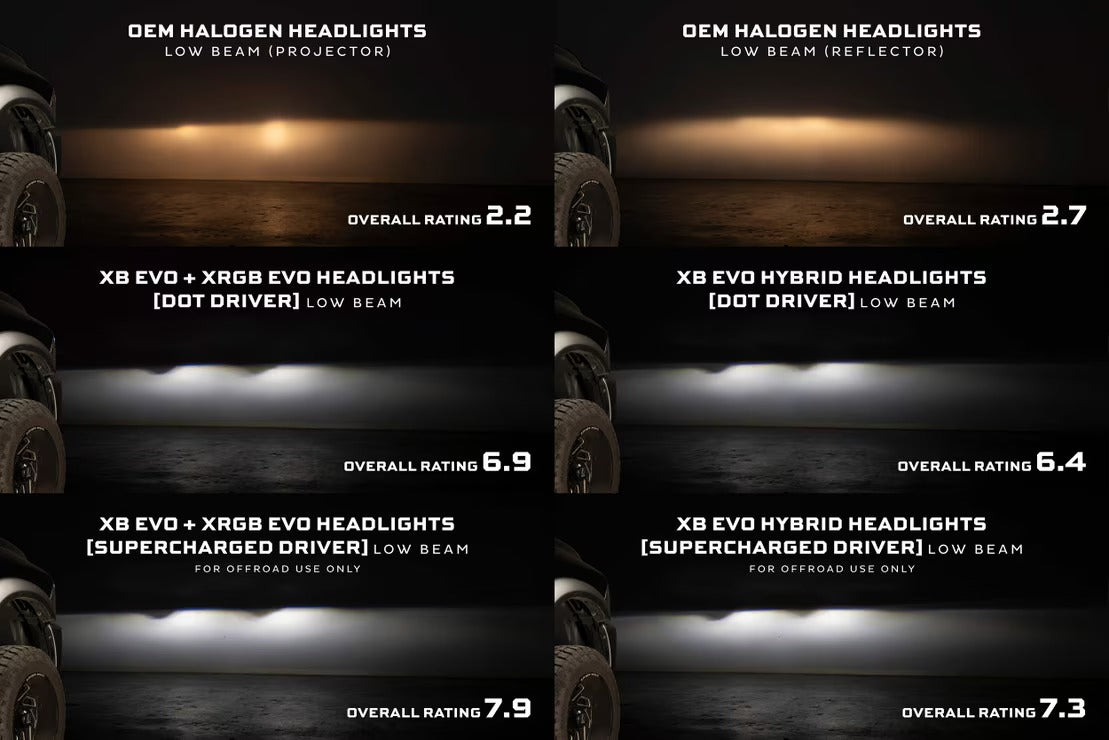

All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing dual Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform the XRGB Evo.

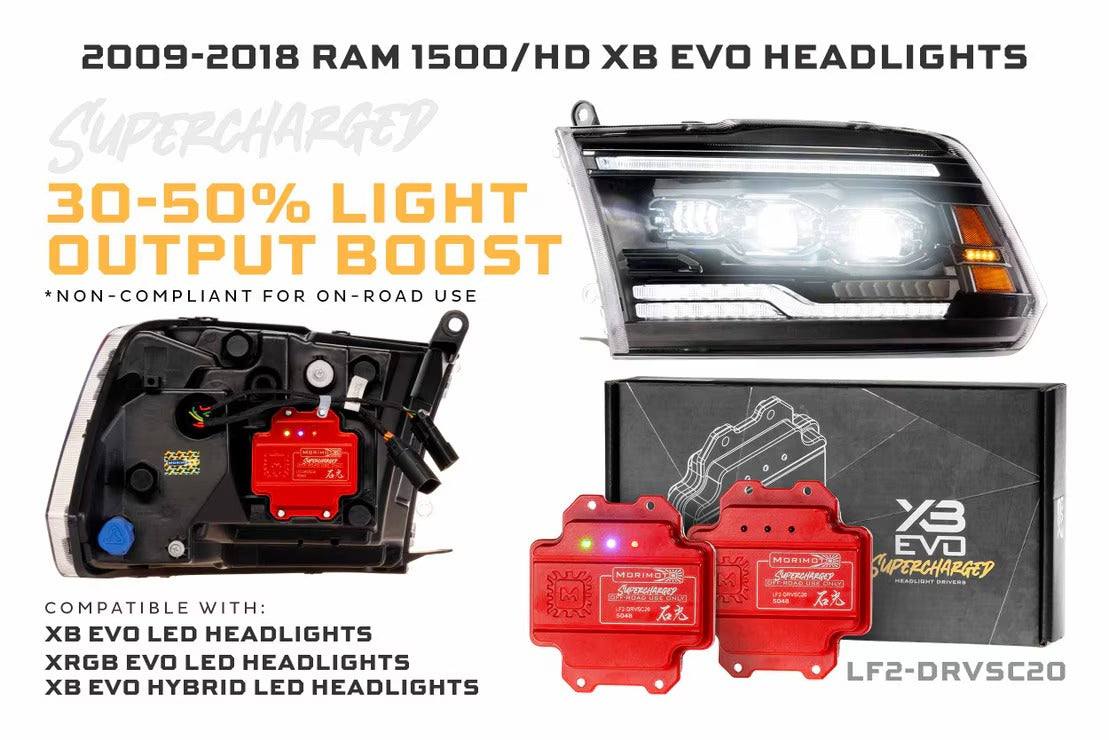

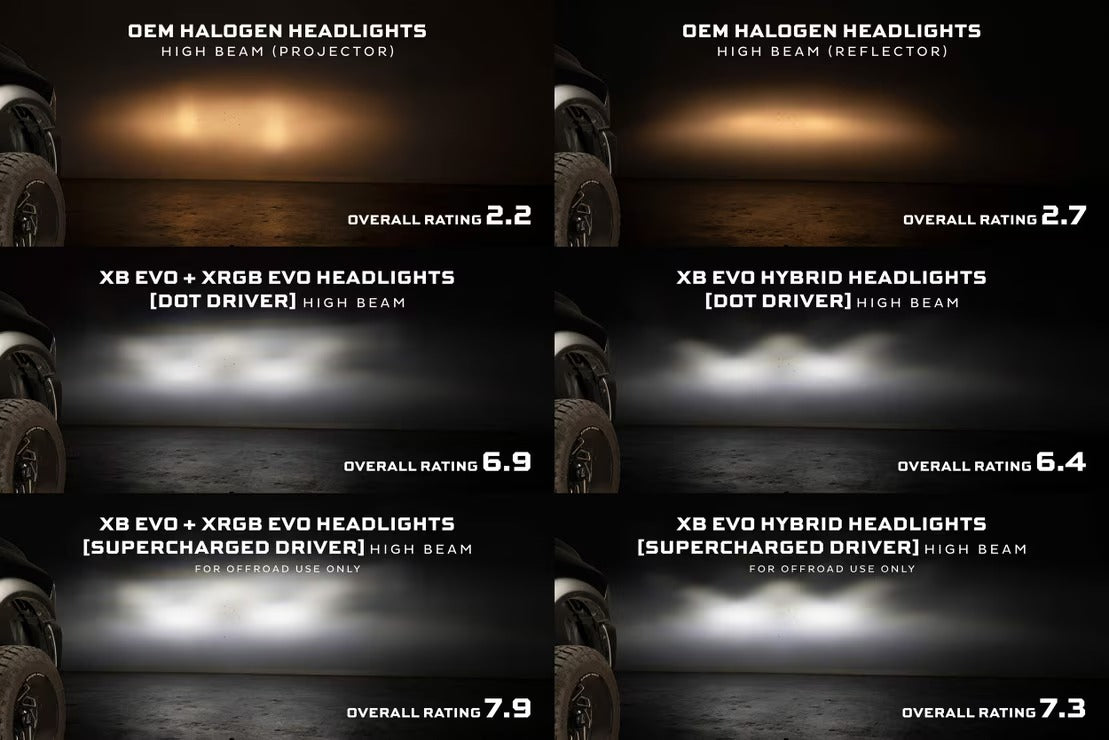

On and Off Road: Optional Supercharged LED drivers boost intensity by 30%, making them the brightest option for Ram owners who want to maximize output for off-road use.
Signal Swap Keys: Enable users to further personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XRGB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
Designed, engineered, and tested: In the USA by Morimoto, the XRGB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.

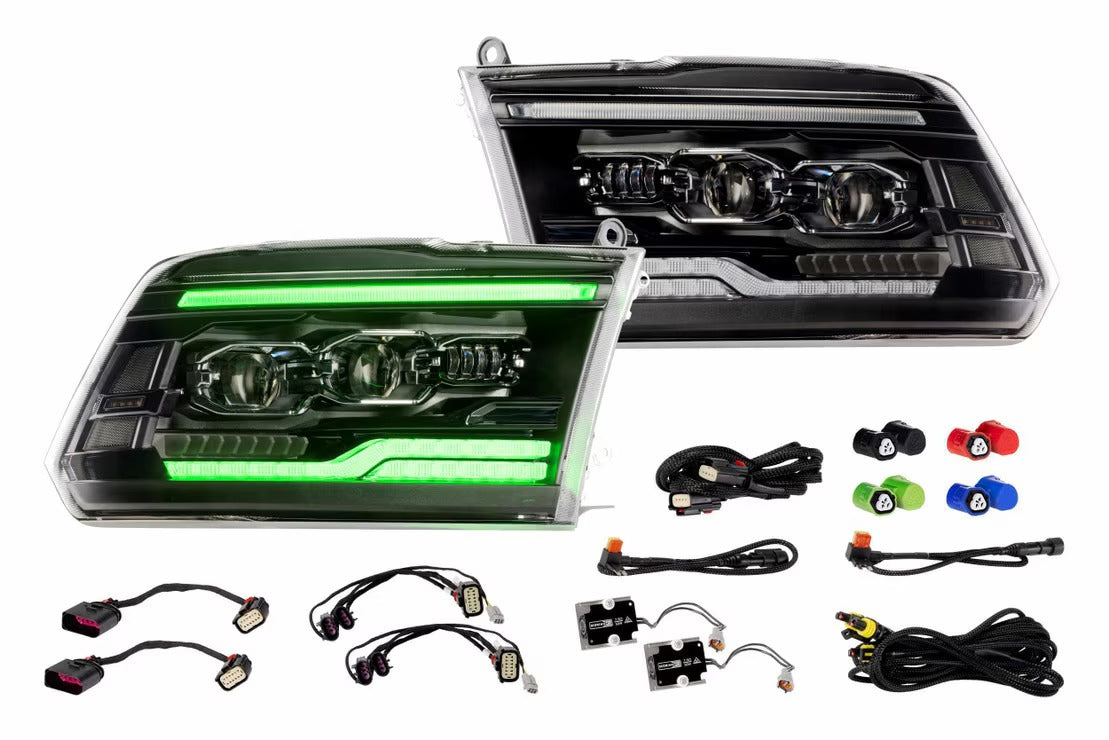

WHAT’S INCLUDED

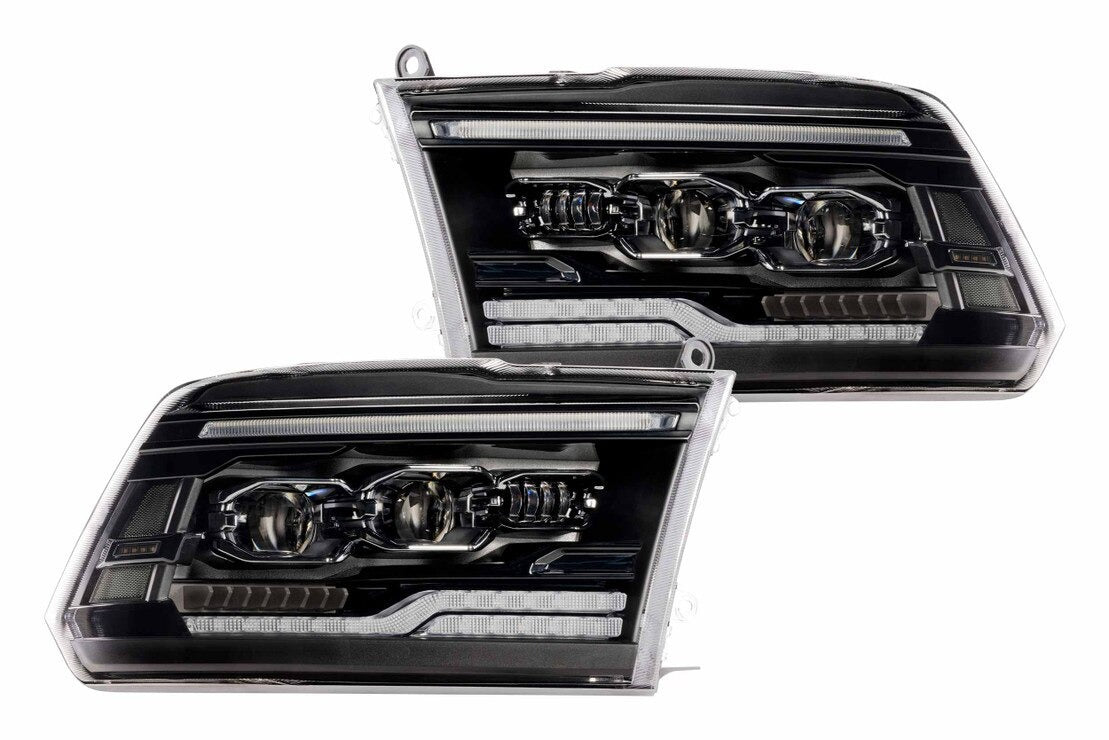

Headlights : One Pair (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)

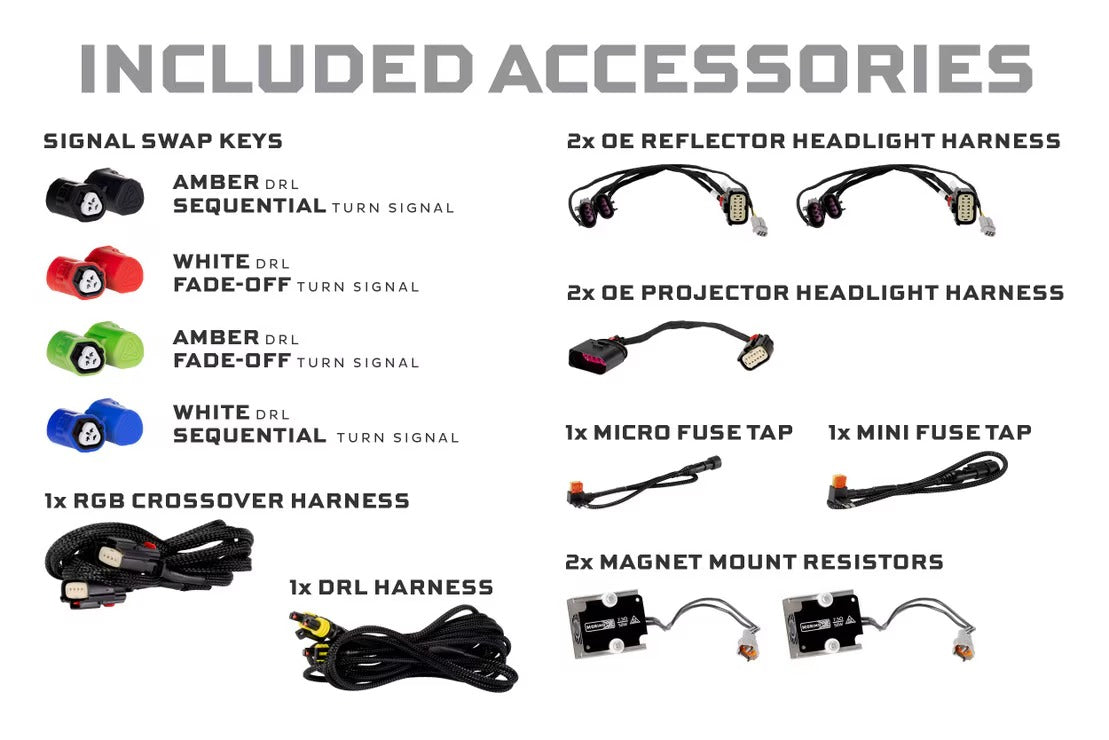

Accessories : 1x Mini Fuse Tap, 1x Micro Fuse Tap, 1x DRL Harness, 2x Magnet-Mount Resistors, 2x OE Reflector Headlight Harnesses, 2x OE Projector Headlight Harnesses, 1x RGB Crossover Harness, 8x (4 Pairs) DRL / Signal Mode Selectors

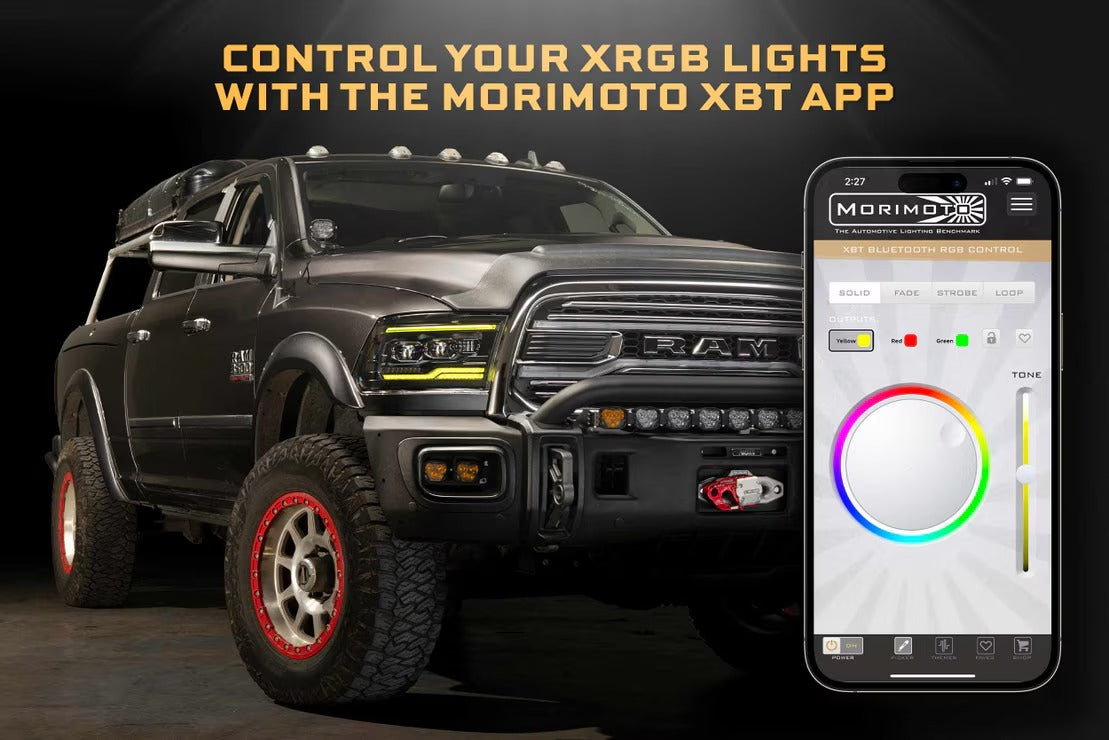

XRGBT Bluetooth App : Free Download in App Store (Compatible phone required)
Optional Supercharged Drivers : 2x LF2-DRVSC20 Drivers
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer.
COMPATIBILITY
Dodge Ram 1500 : 2009-2018
Dodge Ram HD : 2009-2018
Ram 1500 Classic : 2019-2024
Replaces Mopar Part # : 55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC
Compliance : Due to the color-changing RGB DRL, these lights are not complaint for on-road use in the USA or Canada.
Supercharged Drivers : Compatible with LF2-DRVSC20 drivers
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
COMPLIANCE

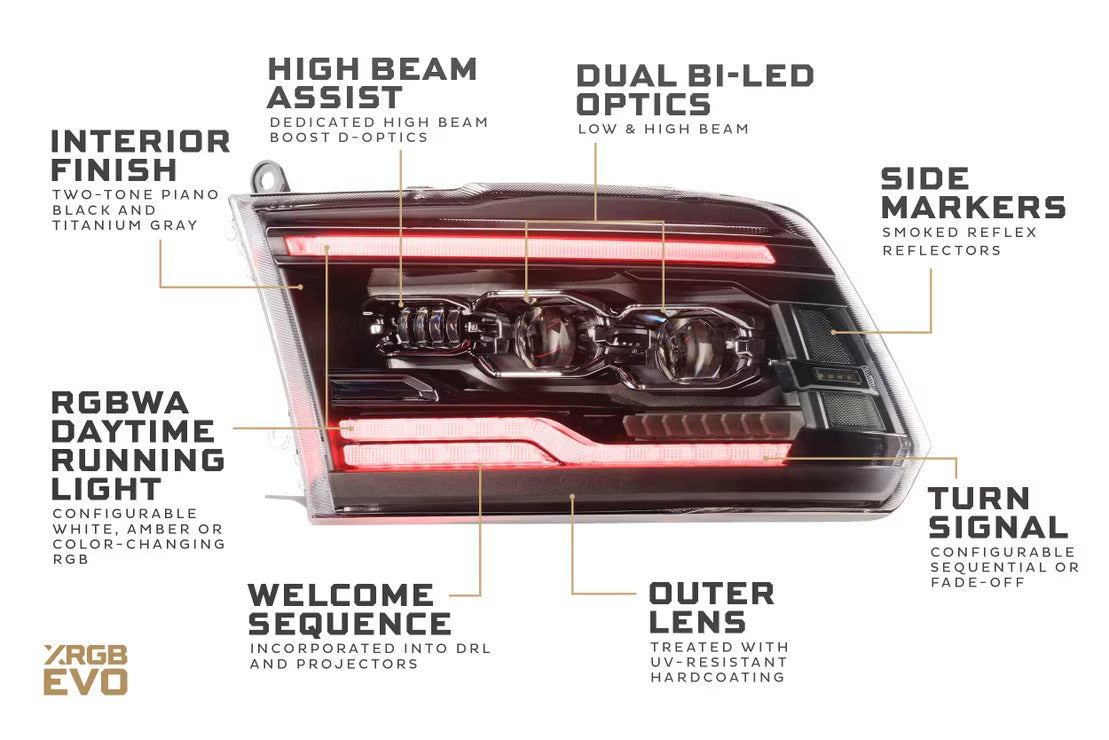

TECHNICAL SPECIFICATIONS
Traffic Pattern : LHD / Right Hand Traffic Only

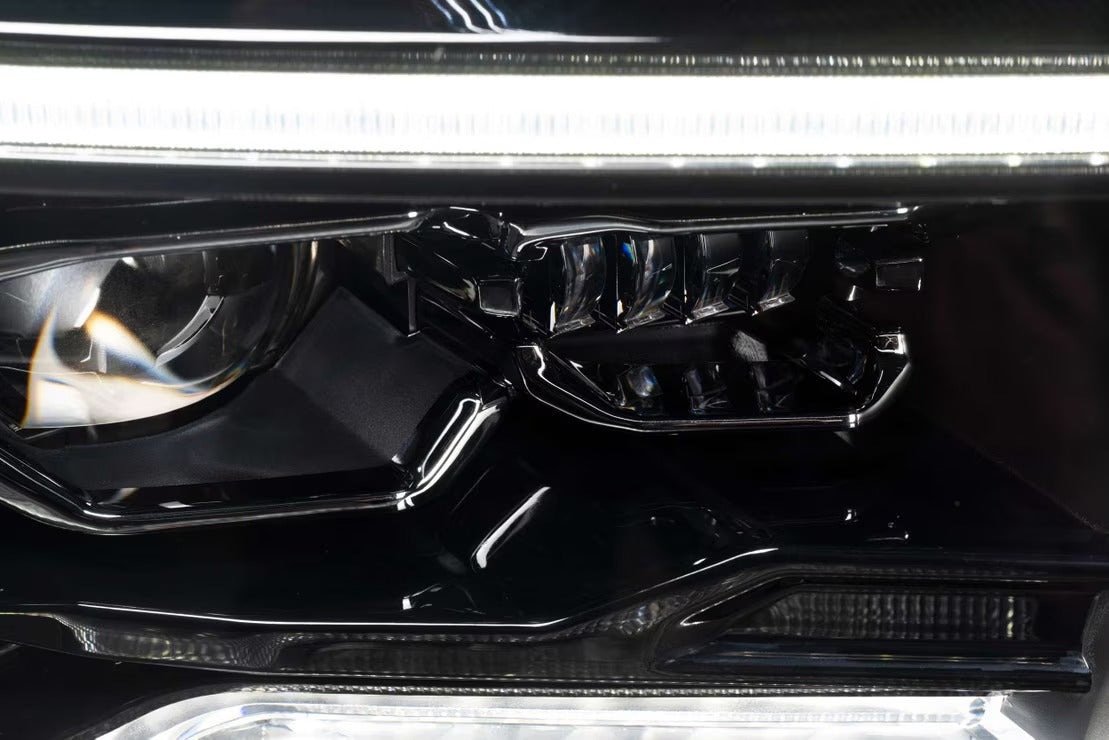

Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)

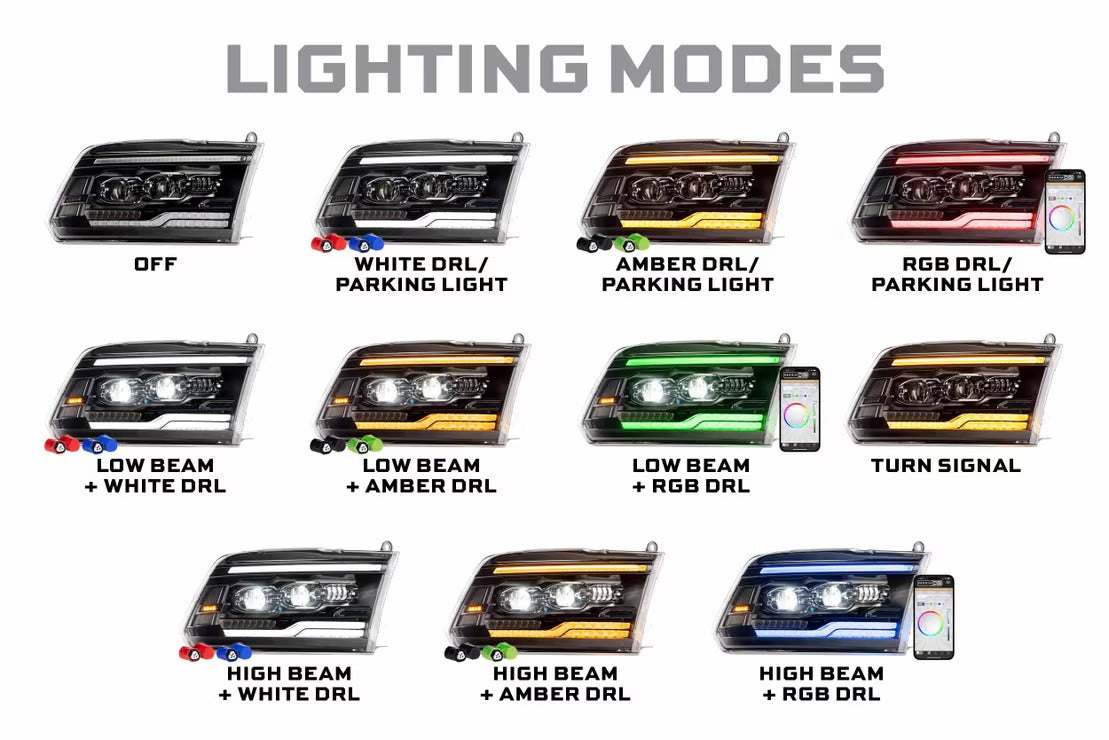

Functions : Low, High, Park, Turn, RGB DRL, Welcome Sequence
Turn Signal Modes : Sequential or Fade Off (Configurable)

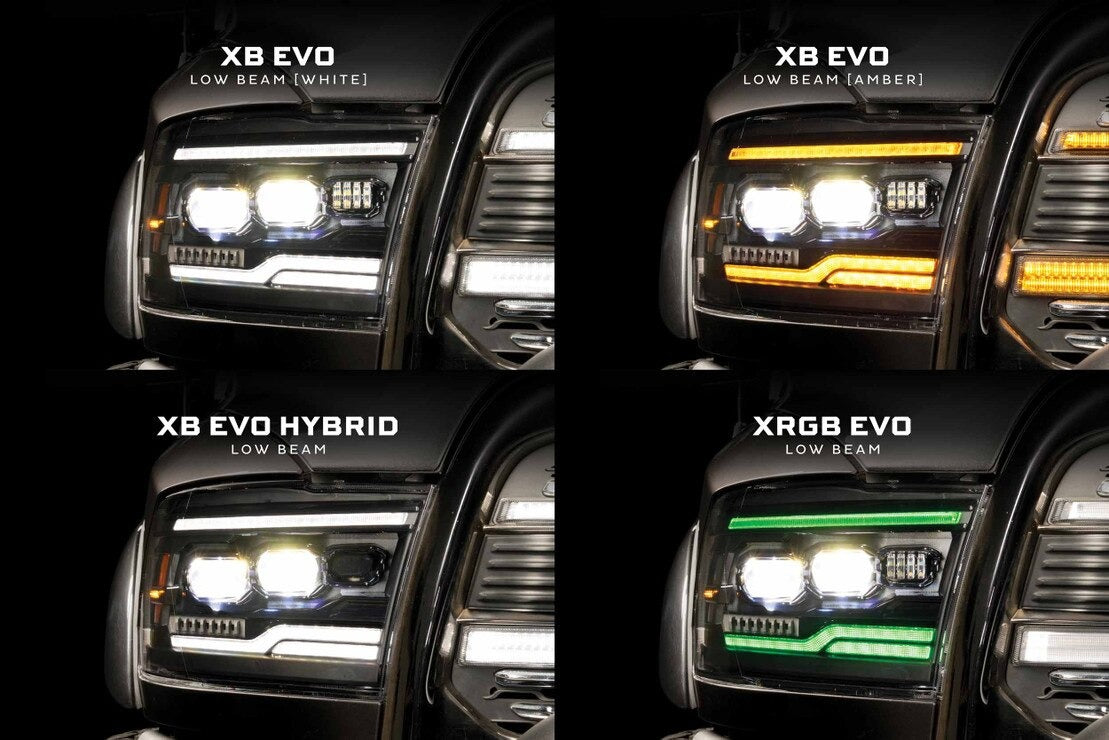

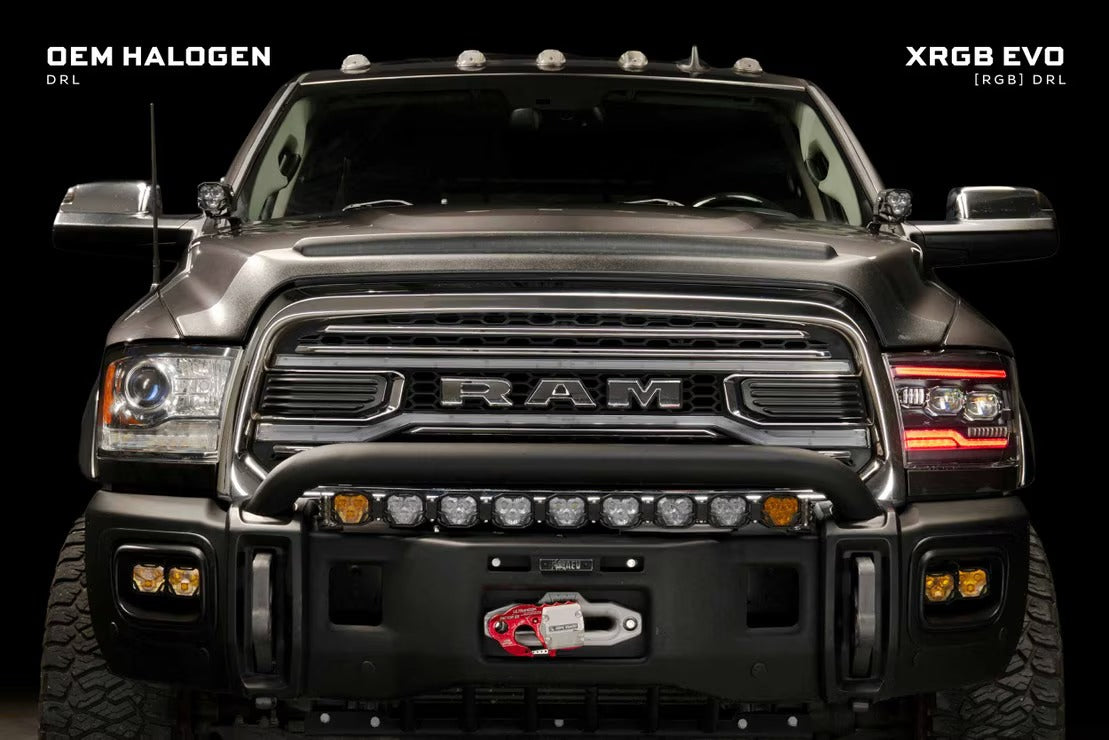

DRL Colors : RGB (via BT app), White or Amber (Configurable)
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side Marker : Smoked side reflex reflector
Lens Details : Polycarbonate with proprietary anti-UV hard coating
