Tralert Atlas 220 driving light duo-colour position lights 12-24V | WD-5860A

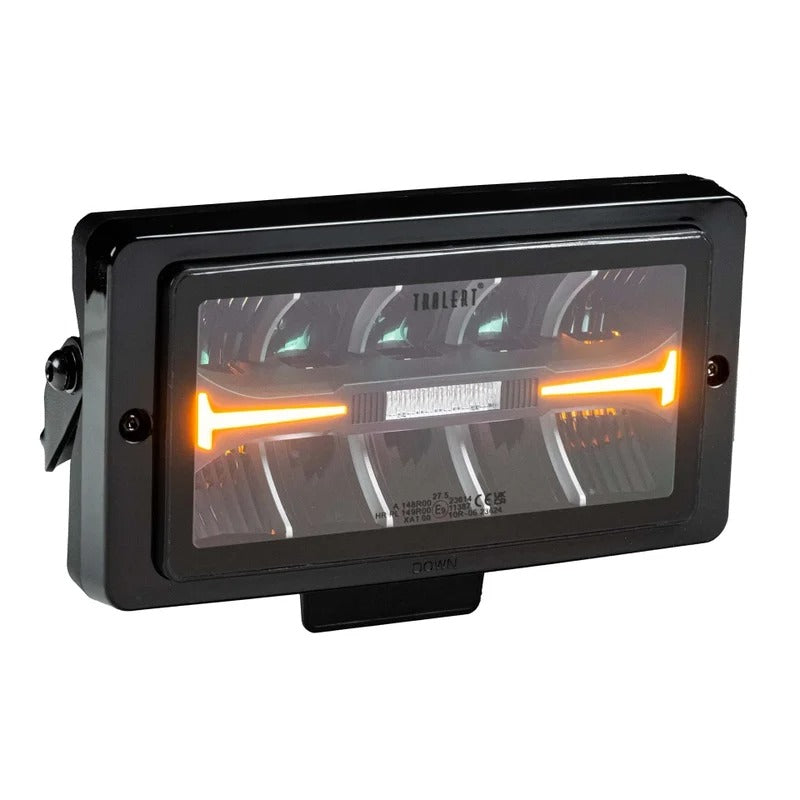

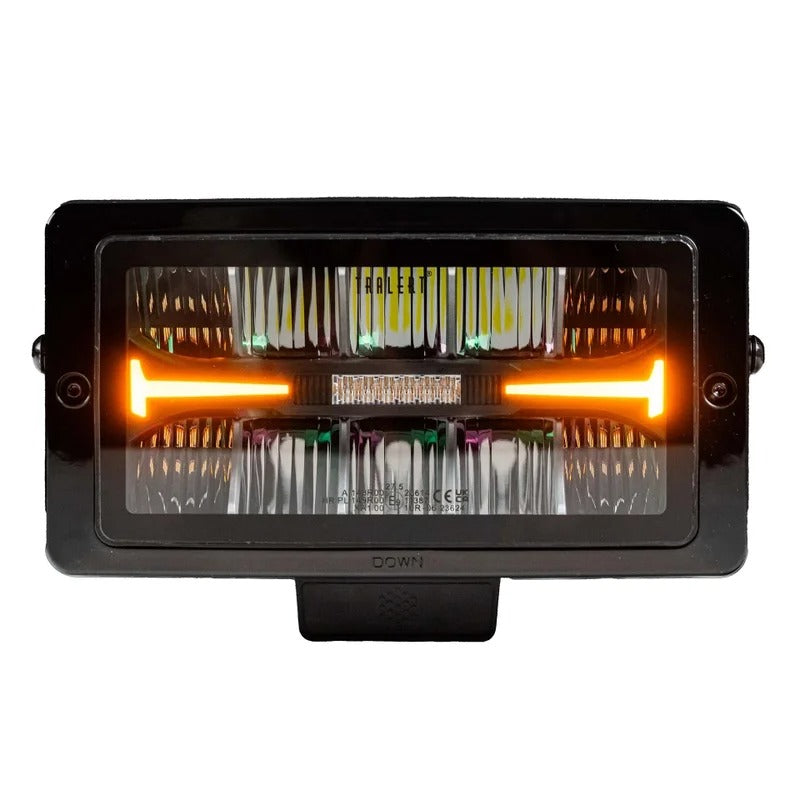

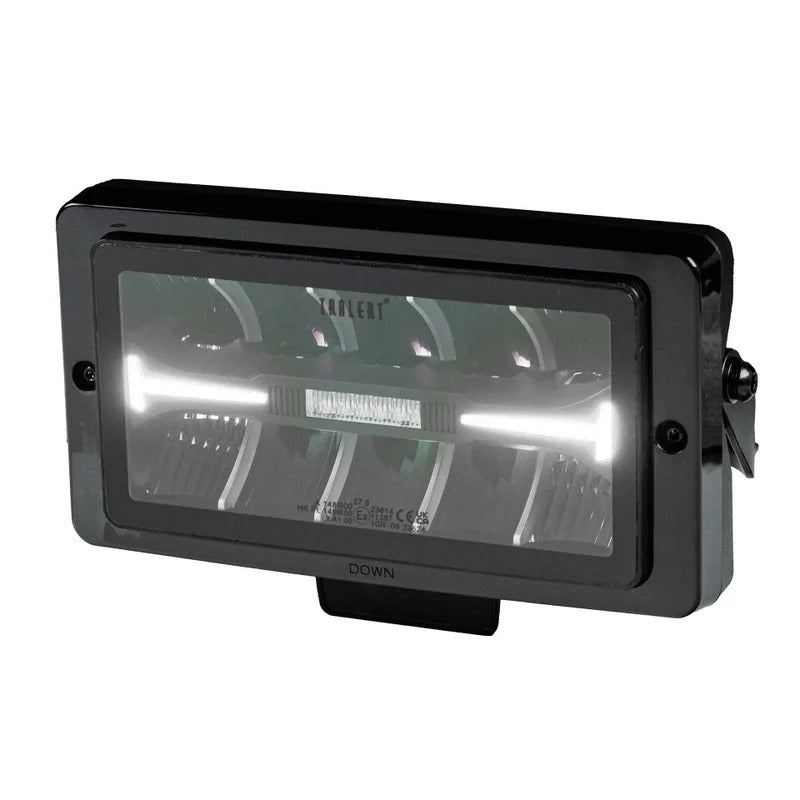

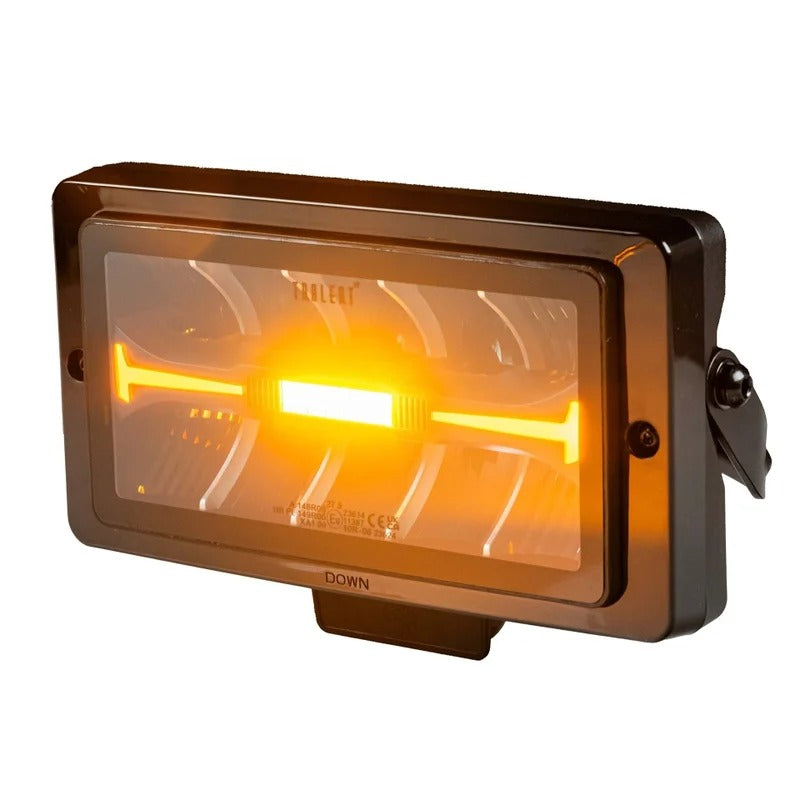

The block lamp version of the TRALERT® Atlas LED driving light range: the Atlas 220+ block lamp (Art. WD-5860A). A modern version with duo-colour daytime running lights of the classic and popular block lamp driving light, to which this version also adds an R65-certified LED warning light. With a light output of 6,000 lumens and retaining the classic design, this driving light is particularly suitable for giving your truck a contemporary look while at the same time greatly improving visibility and signalling.

This LED driving light is designed to deliver maximum performance in all conditions. This is reflected in its IP value of IP69K, for example. This means that it is resistant to high-pressure spray. The EMC interference suppression is also of the highest standard and all functions, including the warning light, are fully certified. This makes the Atlas 220+ ideal for all modern trucks.

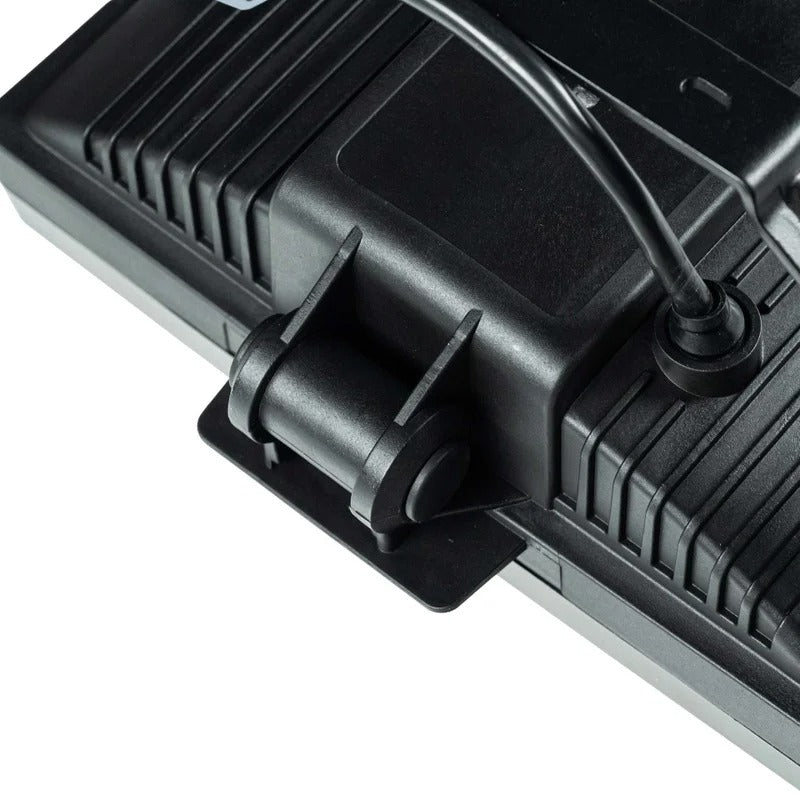

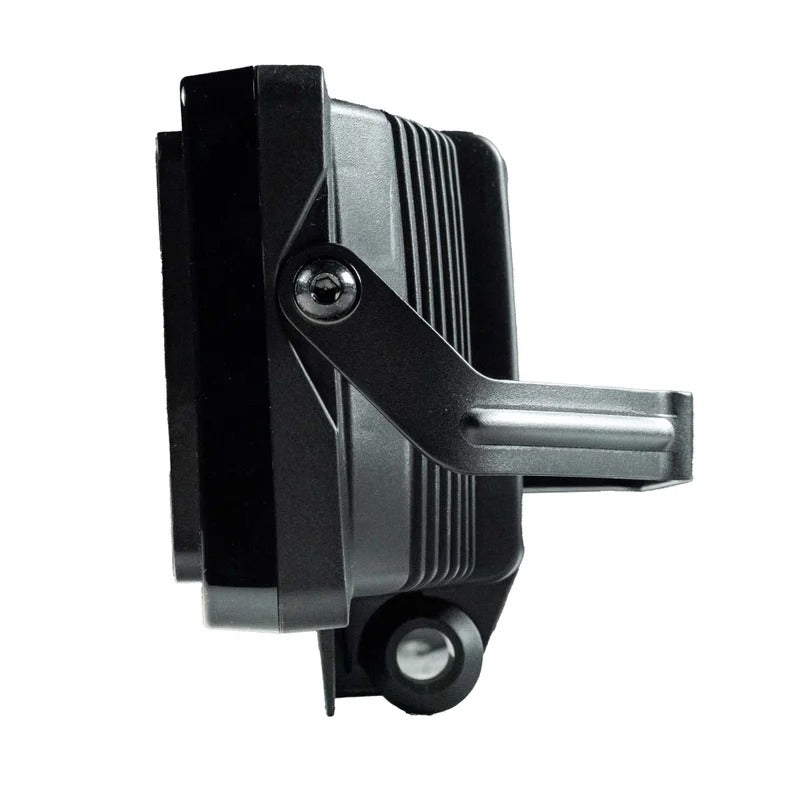

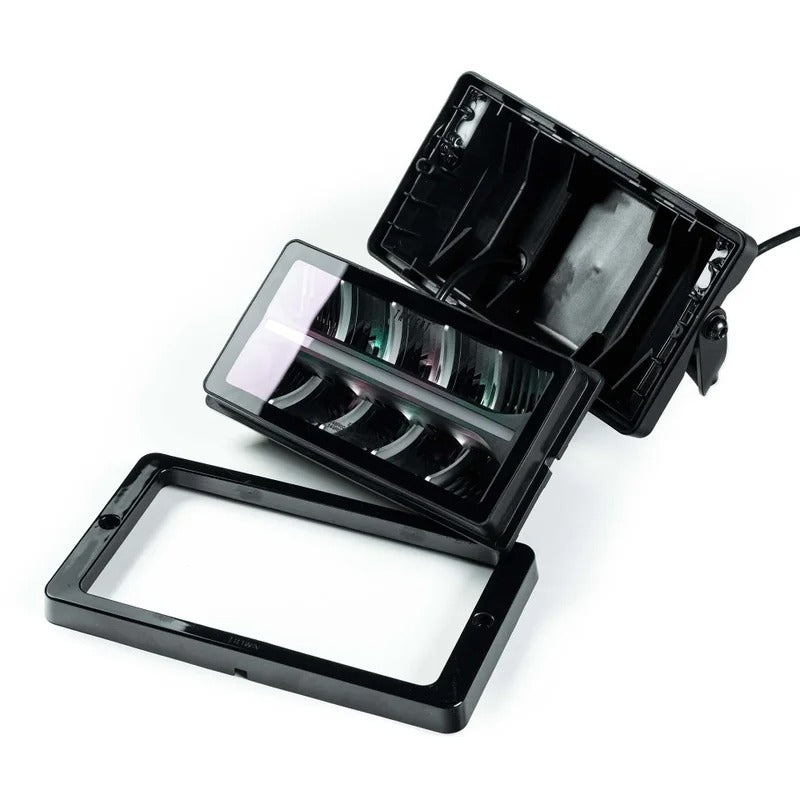

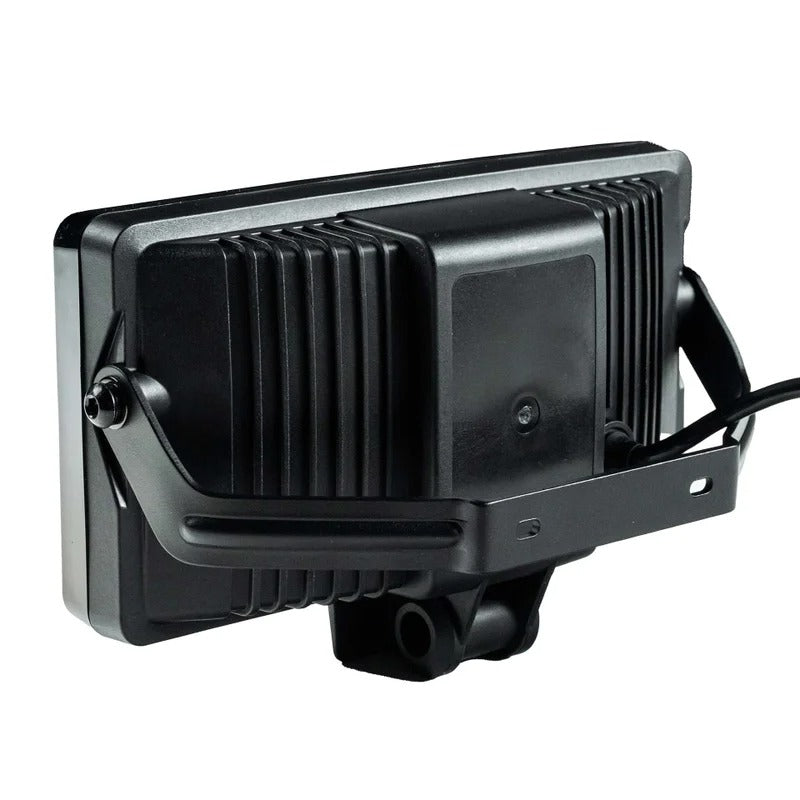

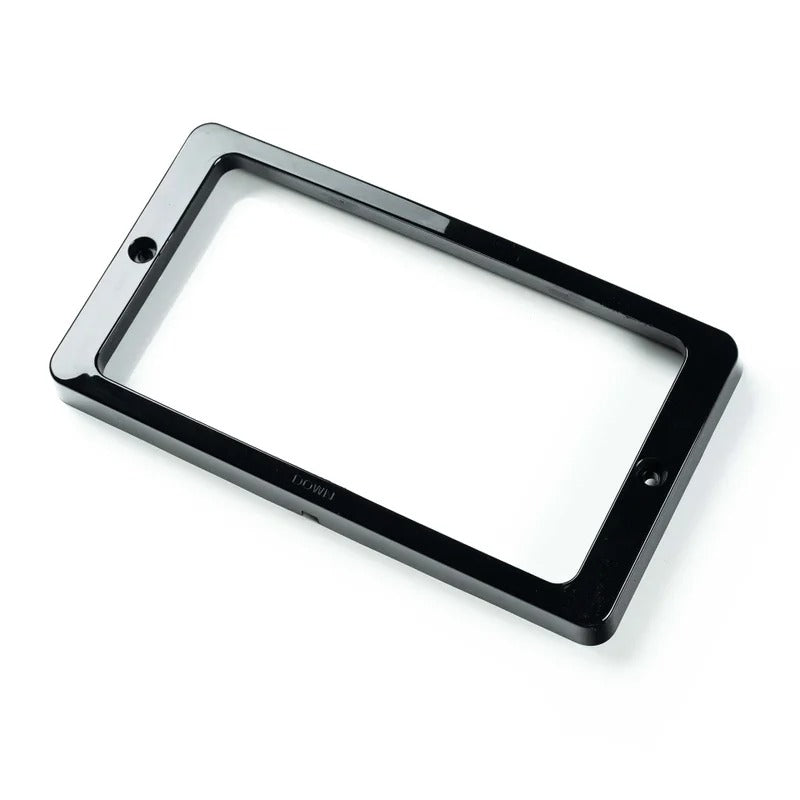

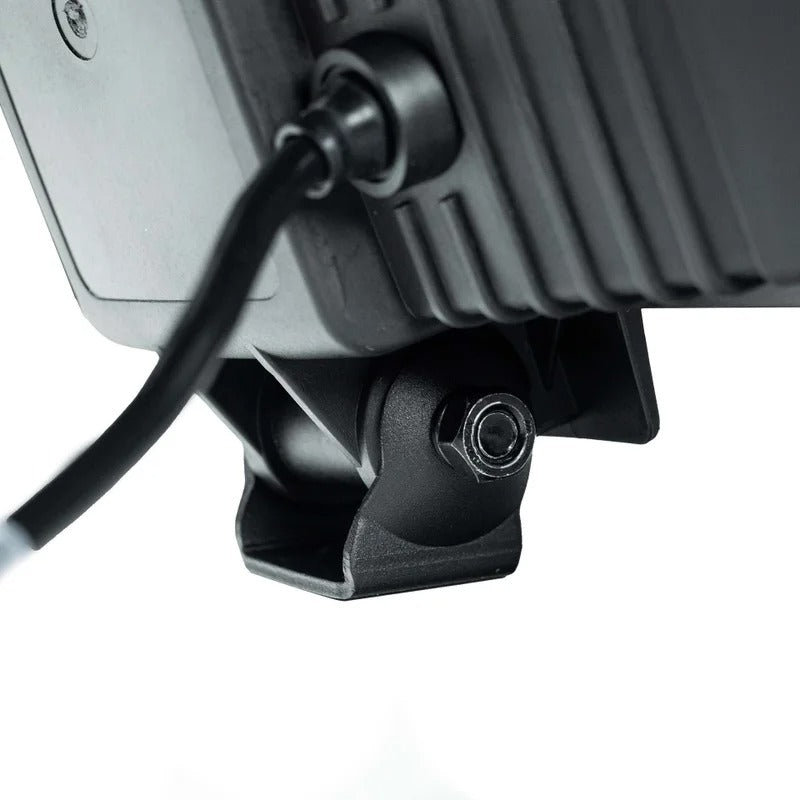

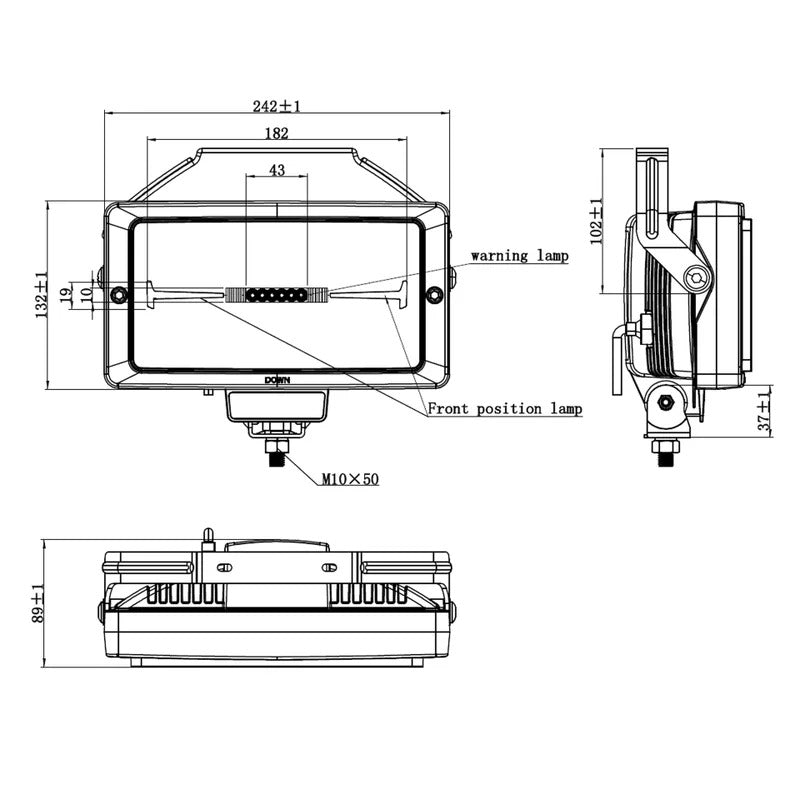

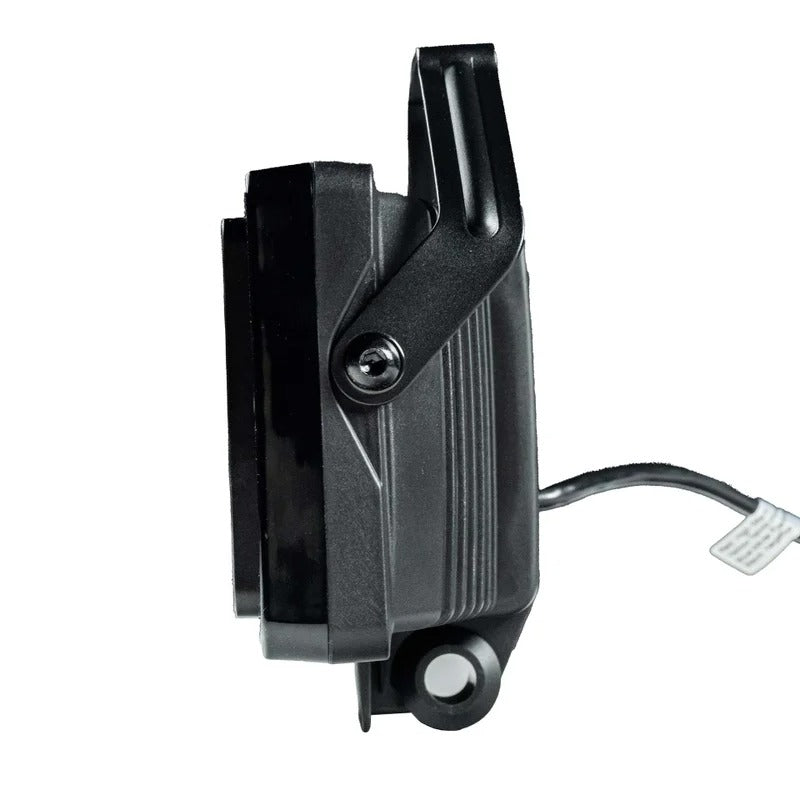

During mounting, this block light can be rotated in the housing. Two mounting brackets are also supplied as standard. These allow for standing and hanging mounting. If the light unit is rotated in the housing, it is important that the edge/cover with the text ‘down’ is also positioned downwards.

The filter of this Atlas 220+ can be synchronised with up to 6 lights. Synchronisation is achieved by connecting all synchronisation wires to each other and then connecting them to the ‘+’ for 5-7 seconds. The lights are then programmed as synchronised. After these 5 seconds, keep the wires connected, only disconnect them from the ‘+’. A manual for this is also included in the packaging.
